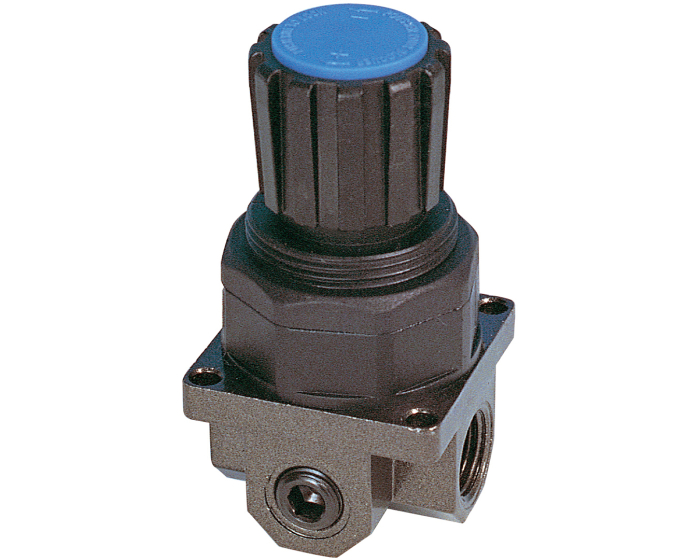

The R200 regulator is designed for the treatment of compressed air or neutral gases. Robust aluminium body. Maximum inlet pressure: 8 bar. Supplied with a mounting bracket and a pressure gauge indicating the downstream pressure.
| Specification | Value |
|---|---|
| EVAC Article Nr. | S104243 |
| Connections | BSP FF |
| Face to Face (mm) | 31.0 |
| Fluid | Compressed air / Nitrogen |
| Body material | Aluminium |
| Option certificate 3.1 | No |
| PS (bar) | 8 |
| Product | Reference |
| SKU | 176202 |
| TS max (°C) | 60 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| Maximum flow rate (Nm³/h) | 90.0 |
| Produit Regulator R200 1762 0.5 - 8 bar 1/4'' | érence 176202 |
